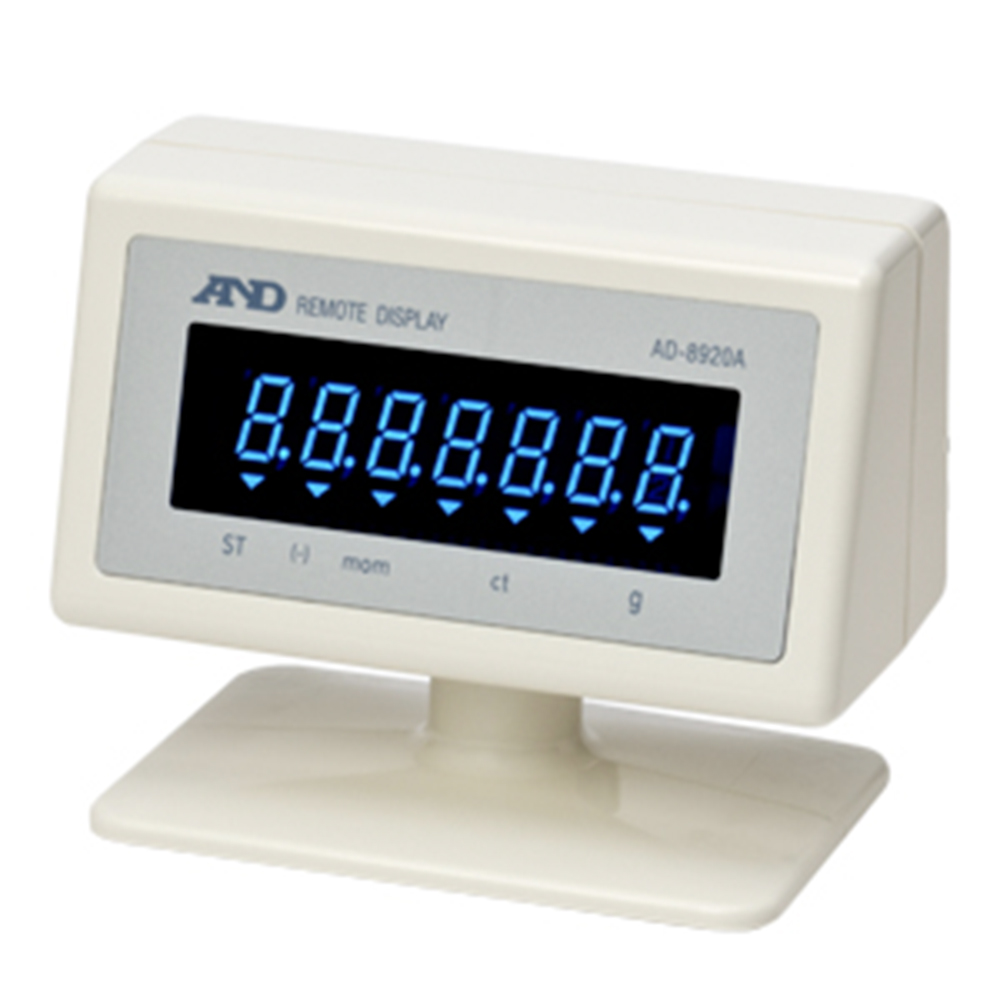

Remote Display

SKU: AD-8920A Categories: ,


> Connects to A&D’s balances and scales using either RS-232C or current loop
> Includes an AC adapter and a communication cable that matches your instrument
> Recognizes the balance/scale baud setting automatically
> Large and bright VFD display

AX-KO3412-05M Communication cable (D-SUB9, 5 m)
AX-KO3412-10M Communication cable (D-SUB9, 10 m)
AX-KO1864-05M Communication cable (D-SUB25, 5 m)
AX-KO1864-10M Communication cable (D-SUB25, 10 m)
AX-KO3413-05M Communication cable (DIN, 5 m)
AX-KO3413-10M Communication cable (DIN, 10 m)

Power consumption Approx. 5VA supplied by the AC adapter (Approx. 8VDC, at approx. 0.2ADC supplied to the AD-8920A)
Display 7-digit VFD, Character height 13 mm
Signal RS-232C / Current loop (ACTIVE)
Baud rate 600, 1200, 2400, 4800, 9600 bps (Automatic recognition)
Length, Parity bit 7 bits-even, 7 bits-odd, 8 bits-none
Stop bits 1 bit or 2 bits
Terminator or
Display refresh rate Approx. 20 times/second (when baud rate is 4800 bps or greater)*1
Input connector Modular jack
Communication cable Approx. 1 m*2
Dimensions 128 (W) × 102 (H) × 76 (D) mm
Net weight Approx. 230 g *3
*1With the condition that the weighing instrument transmits data 20 times per second.
*2A special cable of approx. 5 m or 10 m is available.
*3Excluding the AC adapter and communication cable
